SNAP Virtual Account

**Please note that this SNAP documentation is still in beta version.

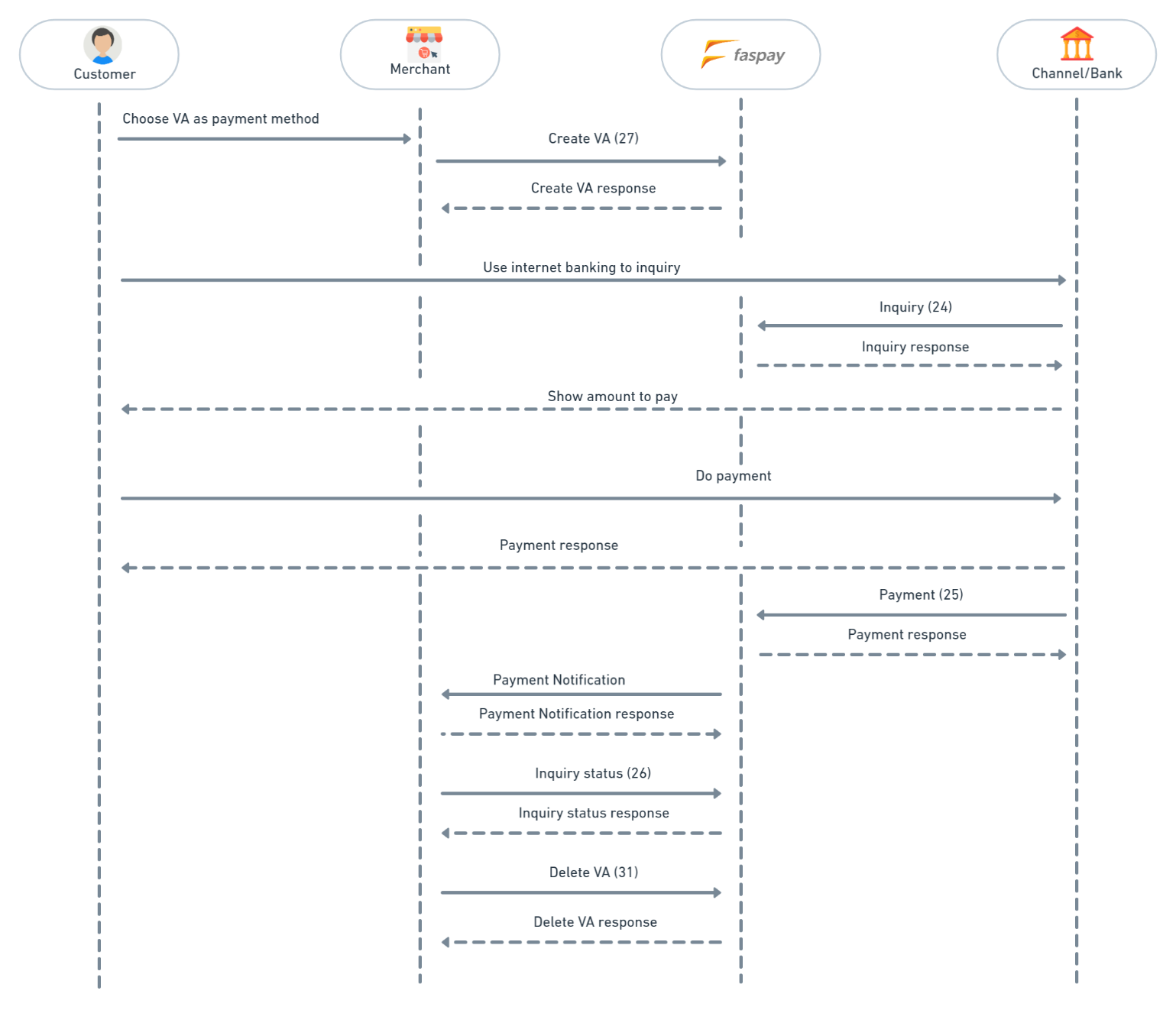

Flow Transaction SNAP Virtual Account
Dynamic Transaction
Static Transaction
Header
Header for transaction request
Field
M/O/C
Type
Description
Content-Type
Mandatory
String
String represents indicate the media type of the resource (e.g. application/json, application/pdf)
X-TIMESTAMP
Mandatory
String
Client's current local time in yyyy-MM-ddTHH:mm:ssTZD format
X-SIGNATURE
Mandatory
String
Represents signature of a request.

Signature Type used:

Asymetric-Signature :
SHA256withRSA (clientSecret, stringToSign) dengan formula
stringToSign = HTTPMethod +”:“+ EndpointUrl +":“+ Lowercase(HexEncode(SHA-256(minify(RequestBody)))) + ":“ + TimeStamp
ORIGIN
Optional
String
Origin Domain www.yourdomain.com
X-PARTNER-ID
Mandatory
String (36)
Unique ID for a partner. merchant_id mapped here
X-EXTERNAL- ID
Mandatory
String (36)
Numeric String. Reference number that should be unique in the same day
CHANNEL-ID
Mandatory
String (36)
PJP’s channel id Device identification on which the API services is currently being accessed by the end user (customer)
Header Response
Field
Attribute
Type
Description
Content-Type
Mandatory
String
application/json
X-TIMESTAMP
Mandatory
String
Client's current local time in yyyy-MM-ddTHH:mm:ssTZD format
Header Request Sample
Header Response Sample
Content-type: application/json
X-TIMESTAMP: 2020-12-17T10:55:00+07:00
X-SIGNATURE: 85be817c55b2c135157c7e89f52499bf0c25ad6eeebe04a986e8c862561b19a5
ORIGIN: www.hostname.com
X-PARTNER-ID: 82150
X-EXTERNAL-ID: 41807553358950093184162180797837
CHANNEL-ID: 88001
Content-type: application/json
X-TIMESTAMP: 2020-12-21T10:30:34+07:00
API Services
post
/{version}/transfer-va
/create-va
Create Virtual Account (VA)
Response Parameter – Create VA
Parameter
Data Type
M/O/C
Description
responseCode
String (7)
Mandatory

Response Code
responseMessage

 String (150)

Mandatory

Response Description

virtualAccountData


Object


Mandatory

​

     partnerServiceId


String (8)


Mandatory

Derivative of X-PARTNER-ID , similar to company code, 8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo

     customerNo


String (20)


Mandatory

Unique number (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo

     virtualAccountNo


String (28)


Mandatory

partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo

     virtualAccountName


String (128)


Mandatory

Customer name

     virtualAccountEmail


String (128)


Optional

Customer email

     virtualAccountPhone


String (30)


Optional

Customer's phone number. Format: 62xxxxxxxxxxxxx

     trxId


String (32)


Mandatory

from Create VA Request

     totalAmount


Object


Optional

​

          value


String (ISO4217) (16,2)


Mandatory

Transaction Amount. Total Amount with 2 decimal.

          currency


String (3)


Mandatory

Currency. Currency of amount based on ISO 4217.

expiredDate


String (25)


Mandatory

Expiration date for Virtual Account. ISO-8601

   additionalInfo


Object


Optional

Additional Information for custom use

          billDate


Datetime (25)


Mandatory

Transaction/ Order Date

          channelCode


Numeric (32)


Mandatory

Payment Channel Code VA ONLY

          billDescription


String (18)


Mandatory

Bill description

          redirectUrl


String


Optional

Merchant call back URL
Create VA - Sample Request
Create VA-Sample Response
{
 "virtualAccountName":"Jokul Doe",
 "virtualAccountEmail":"[email protected]",
 "virtualAccountPhone":"6281828384858",
 "trxId":"abcdefgh1234",
 "totalAmount":{
     "value":"12345678.00",
     "currency":"IDR"
 },
 "expiredDate":"2020-12-31T23:59:59-07:00",
 "additionalInfo":{
     "billDate":"2020-12-31T23:59:59-07:00",
     "channelCode":"6011",
     "billDescription":"Maintenance"
 }
}
​
{
   "responseCode":"2002500",
   "responseMessage":"Success",
   "virtualAccountData":{
      "partnerServiceId":" 088899",
      "customerNo":"12345678901234567890",
      "virtualAccountNo":"08889912345678901234567890",
      "virtualAccountName":"Jokul Doe",
      "virtualAccountEmail":"[email protected]",
      "virtualAccountPhone":"6281828384858",
      "trxId":"abcdefgh1234",
      "totalAmount":{
         "value":"12345678.00",
         "currency":"IDR"
      },
      "expiredDate":"20201231T235959Z",
         "additionalInfo":{
            "billDate":"2020-12-31T23:59:59-07:00",
            "channelCode":"6011",
            "billDescription":"Maintenance",
            "redirectUrl":"https://dev.faspay.co.id/pws/100003/0830000010100000/5807a17ccd950904ec0a303725fa8a4b36c89e2f?trx_id=9876530200004184&merchant_id=98765&bill_no=98765123456789"
   }
}
post
/{version}/transfer-va
/inquiry
Inquiry
Inquiry Response
Parameter
Data Type
M/O/C
Description

responseCode


String (7)


Mandatory

Response Code

responseMessage


String (150)


Mandatory

Response Description

virtualAccountData


Object


Mandatory

​

          partnerServiceId


String (8)


Mandatory

Derivative of X-PARTNER-ID , similar to company code, 8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo

          customerNo


String (20)


Mandatory

Unique number. (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo

          virtualAccountNo


String (28)


Mandatory

partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo

          virtualAccountName


String (50)


Mandatory

Customer name

          virtualAccountEmail


String (255)


Mandatory

Customer email

          virtualAccountPhone


String (30)


Mandatory

Customer's phone number. Format: 62xxxxxxxxxxxxx

          inquiryRequestId


String (128)


Mandatory

From Inquiry Request

          totalAmount


Object


Mandatory

​

             value


String (ISO4217) (16,2)


Mandatory

Transaction Amount. Total Amount with 2 decimal

             currency


String (3)


Mandatory

Currency

          subCompany


String (5)


Optional

Sub Company code generated by Partner
Inquiry-Sample Request
Inquiry-Sample Response
{
   "partnerServiceId":"  88899",
   "customerNo":"12345678901234567890",
   "virtualAccountNo":"  08889912345678901234567890",
   "inquiryRequestId":"abcdef-123456-abcdef"
}
{
   "responseCode":"2002400",
   "responseMessage":"Success",
   "virtualAccountData":{
      "partnerServiceId":"  088899",
      "customerNo":"12345678901234567890",
      "virtualAccountNo":"  08889912345678901234567890",
      "virtualAccountName":"Johnny Suh",
      "virtualAccountEmail":"[email protected]",
      "virtualAccountPhone":"6281828384858",
      "inquiryRequestId":"abcdef-123456-abcdef",
      "totalAmount":{
         "value":"12345678.00",
         "currency":"IDR"
      },
      "subCompany":"12345",
      }
   }
}
post
/{version}/transfer-va
/payment
Payment
Payment Response Parameter
Parameter
Data Type
M/O/C
Description
responseCode
String (7)
Mandatory
Response Code
responseMessage
String (150)
Mandatory
Response Description
virtualAccountData
Object
Mandatory

     partnerServiceId
String (8)
Mandatory
Derivative of X-PARTNER-ID , similar to company code, 8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo
     customerNo
String (20)
Mandatory
Unique number. (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
     virtualAccountNo
String (28)
Mandatory
partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
     virtualAccountName
String (255)
Mandatory
Customer name
     trxId
String (32)
Mandatory
From Payment Request
     paymentRequestId
String (128)
Mandatory
From Payment Request
     paidAmount
Object
Mandatory

          value
String (ISO4217) (16,2)
Mandatory
Transaction Amount. From Payment Request
          currency
String (3)
Mandatory
Currency
Payment-Sample Request
Payment-Sample Response
{
   "partnerServiceId":"  088899",
   "customerNo":"12345678901234567890",
   "virtualAccountNo":"  08889912345678901234567890",
   "trxId":"abcdefgh1234",
   "paymentRequestId":"abcdef-123456-abcdef",
   "paidAmount":{
      "value":"12345678.00",
      "currency":"IDR"
   },
   "trxDateTime":"20201231T235959Z"
   "referenceNo":"123456789012345"
}
​
{
   "responseCode":"2002500",
   "responseMessage":"Success",
   "virtualAccountData":{
      "partnerServiceId":" 088899",
      "customerNo":"12345678901234567890",
      "virtualAccountNo":"  08889912345678901234567890",
      "virtualAccountName":"Johnny Suh",
      "trxId":"abcdefgh1234",
      "paymentRequestId":"abcdef-123456-abcdef",
      "paidAmount":{
         "value":"12345678.00",
         "currency":"IDR"
      }
   }
}
get
/{version}/transfer-va
/status
Inquiry Status
Response Inquiry Status
Parameter
Data Type
M/O/C
Description
responseCode
String (7)
Mandatory
Response Code
responseMessage
String (150)
Mandatory
Response Description
virtualAccountData
Object
Mandatory

    paymentFlagReason
Object
Mandatory
Reason for Payment Status multi language
          english
String (32)
Mandatory
Reason for Payment Status in English
    partnerServiceId
String (8)
Mandatory
Derivative of X-PARTNER-ID , similar to company code,
8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo
    customerNo
String (20)
Mandatory
Unique number (up to 20 digits)
    virtualAccountNo
String (28)
Mandatory
partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits)
   inquiryRequestId
String (128)
Conditional
Unique identifier from Inquiry
   paymentRequestId
String (16)
Conditional
Unique identifier for this Payment from Faspay. Mandatory if Payment happened.
paidAmount
Object
Mandatory

     value
String (ISO4217) (16,2)
Mandatory
Paid Amount with 2 decimal
     currency
String (3)
Mandatory
Currency. Currency of amount based on ISO 4217
transactionDate
Date (25)
Conditional
Mandatory when the payment happened
paymentFlagStatus
String (2)
Mandatory
Status for Payment Flag
additionalInfo
Object
Mandatory
​
     channelCode
String (32)
Mandatory
Payment Channel Code VA ONLY
​
Inquiry Status-Request Sample
Inquiry Status-Response Sample
{
 "partnerServiceId":"088899",
 "customerNo":12345678901234567890,
 "virtualAccountNo":"08889912345678901234567890",
 "inquiryRequestId":"abcdef-123456-abcdef",
 "additionalInfo":{
      "channelCode":"6011",
      "trxId":"9876540000001115"
 }
}
{
   "responseCode":"2002600",
   "responseMessage":"Success",
   "virtualAccountData":{
      "paymentFlagReason":{
         "english":"Success",
      },
      "partnerServiceId":"  088899",
      "customerNo":"12345678901234567890",
      "virtualAccountNo":"  08889912345678901234567890",
      "inquiryRequestId":"abcdef-123456-abcdef",
      "paymentRequestId":"abcdef-123456-abcdef",
      "paidAmount":{
          "value":"12345678.00",
          "currency":"IDR"
       },
      "transactionDate":"20201231T235959Z",
      "paymentFlagStatus":"00",
      "additionalInfo":{
          "channelCode":"6011"
   }
}
}
delete
/{version}/transfer-va
/delete-va
Delete Virtual Account
Response Delete VA
Parameter
Data Type
M/O/C
Description
responseCode
String (7)
Mandatory
Response Code
responseMessage
String (150)
Mandatory
Response Description
virtualAccountData
Object
Mandatory

     partnerServiceId
String (8)
Mandatory
Derivative of X-PARTNER-ID, similar to company code, 8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo
     customerNo
String (20)
Mandatory
Unique number (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
      virtualAccountNo
String (28)
Mandatory
partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
     additionalInfo
Object (unlimited)
Optional
From Inquiry Response
        billNo
String (32)
Mandatory
Bill number from partner
        trxStatusCode
String (5)
Mandatory
Transaction Status
        trxStatusDesc
String (32)
Mandatory
Transaction Status Description
Delete VA-Request Sample
Delete VA-Response Sample
{
   "partnerServiceId":"  088899",
   "customerNo":"12345678901234567890",
   "virtualAccountNo":"  08889912345678901234567890",
   "additionalInfo":{
       "reason":"Barang Habis"
   }
}
{
   "responseCode":"2003100",
   "responseMessage":"Success",
   "virtualAccountData":{
      "partnerServiceId":"  088899",
      "customerNo":"12345678901234567890",
      "virtualAccountNo":"  08889912345678901234567890",
      "additionalInfo":{
          "billNo":"98765123456789",
          "trxStatusCode":"3",
          "trxStatusDesc":"Order Canceled"
      }
   }
}
​
Payment Notifications
Payment notification from Faspay to merchant backend will also be triggered an event of transaction status getting updated, to ensure merchant is securely informed. Please provide the URL and make sure it's already registered on Faspay system.
The detailed API reference can be found here ​
Integration Requirement
Response Code
Component
Data Type
Length
Description
responseCode
String
7
response code = HTTP status code + service code + case code
responseMessage
String
150
​
Response Code List
Category
HTTP Code
Service Code
Case Code
Response Message
Description
Success
200
any
0
Successful
Successful
Success
202
any
0
Request In Progress
Transaction still on process
System
400
any
0
Bad Request
General request failed error, including message parsing failed.
Message
400
any
1
Invalid Field Format {field name}
Invalid format
Message
400
any
2
Invalid Mandatory Field {field name}
Missing or invalid format on mandatory field
System
401
any
0
Unauthorized. [reason]
General unauthorized error (No Interface Def, API is Invalid, Oauth Failed, Verify Client Secret Fail, Client Forbidden Access API, Unknown Client, Key not Found)
System
401
any
1
Invalid Token (B2B)
Token found in request is invalid (Access Token Not Exist, Access Token Expiry)
System
401
any
2
Invalid Customer Token
Token found in request is invalid (Access Token Not Exist, Access Token Expiry)
System
401
any
3
Token Not Found (B2B)
Token not found in the system. This occurs on any API that requires token as input parameter
System
401
any
4
Customer Token Not Found
Token not found in the system. This occurs on any API that requires token as input parameter
Business
403
any
0
Transaction Expired
Transaction expired
System
403
any
1

Field	M/O/C	Type	Description
Content-Type	Mandatory	String	String represents indicate the media type of the resource (e.g. application/json, application/pdf)
X-TIMESTAMP	Mandatory	String	Client's current local time in yyyy-MM-ddTHH:mm:ssTZD format
X-SIGNATURE	Mandatory	String	Represents signature of a request. Signature Type used: Asymetric-Signature : SHA256withRSA (clientSecret, stringToSign) dengan formula stringToSign = HTTPMethod +”:“+ EndpointUrl +":“+ Lowercase(HexEncode(SHA-256(minify(RequestBody)))) + ":“ + TimeStamp
ORIGIN	Optional	String	Origin Domain www.yourdomain.com
X-PARTNER-ID	Mandatory	String (36)	Unique ID for a partner. `merchant_id` mapped here
X-EXTERNAL- ID	Mandatory	String (36)	Numeric String. Reference number that should be unique in the same day
CHANNEL-ID	Mandatory	String (36)	PJP’s channel id Device identification on which the API services is currently being accessed by the end user (customer)

Parameter	Data Type	M/O/C	Description
responseCode	String (7)	Mandatory	Response Code
responseMessage	String (150)	Mandatory	Response Description
virtualAccountData	Object	Mandatory
partnerServiceId	String (8)	Mandatory	Derivative of X-PARTNER-ID , similar to company code, 8 digit left padding space. partnerServiceId + customerNo or virtualAccountNo
customerNo	String (20)	Mandatory	Unique number (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
virtualAccountNo	String (28)	Mandatory	partnerServiceId (8 digit left padding space) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
virtualAccountName	String (128)	Mandatory	Customer name
virtualAccountEmail	String (128)	Optional	Customer email
virtualAccountPhone	String (30)	Optional	Customer's phone number. Format: 62xxxxxxxxxxxxx
trxId	String (32)	Mandatory	from Create VA Request
totalAmount	Object	Optional
value	String (ISO4217) (16,2)	Mandatory	Transaction Amount. Total Amount with 2 decimal.
currency	String (3)	Mandatory	Currency. Currency of amount based on ISO 4217.
expiredDate	String (25)	Mandatory	Expiration date for Virtual Account. ISO-8601
additionalInfo	Object	Optional	Additional Information for custom use
billDate	Datetime (25)	Mandatory	Transaction/ Order Date
channelCode	Numeric (32)	Mandatory	Payment Channel Code VA ONLY
billDescription	String (18)	Mandatory	Bill description
redirectUrl	String	Optional	Merchant call back URL

Component	Data Type	Length	Description
responseCode	String	7	response code = HTTP status code + service code + case code
responseMessage	String	150

Category	HTTP Code	Service Code	Case Code	Response Message	Description
Success	200	any	0	Successful	Successful
Success	202	any	0	Request In Progress	Transaction still on process
System	400	any	0	Bad Request	General request failed error, including message parsing failed.
Message	400	any	1	Invalid Field Format {field name}	Invalid format
Message	400	any	2	Invalid Mandatory Field {field name}	Missing or invalid format on mandatory field
System	401	any	0	Unauthorized. [reason]	General unauthorized error (No Interface Def, API is Invalid, Oauth Failed, Verify Client Secret Fail, Client Forbidden Access API, Unknown Client, Key not Found)
System	401	any	1	Invalid Token (B2B)	Token found in request is invalid (Access Token Not Exist, Access Token Expiry)
System	401	any	2	Invalid Customer Token	Token found in request is invalid (Access Token Not Exist, Access Token Expiry)
System	401	any	3	Token Not Found (B2B)	Token not found in the system. This occurs on any API that requires token as input parameter
System	401	any	4	Customer Token Not Found	Token not found in the system. This occurs on any API that requires token as input parameter
Business	403	any	0	Transaction Expired	Transaction expired
System	403	any	1
